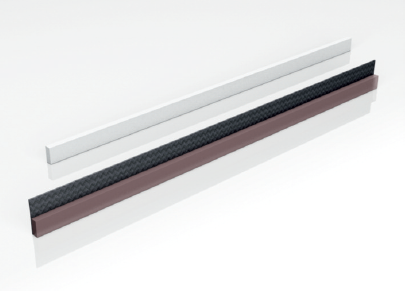

RKS ROTARY SQUEEGEES TYPE RS WP

The RS WP Rotation blade enables a constant, reproducible, and standardised rotary screen for all speeds and designs.



Extensive research and development work, in close co-operation with the company Gallus, Ferd Rüesch AG, has allowed us to complement the specific parameters in relation to the quality demands that the High-End Graphic and High End Industrial requirements for the Gallus screen printing units.





RKS uses for it’s product  RS WP rotary blades only the very best carbon fibre support and irremovable highly resistant (Vulkollan®) for this application.





- Highly flexible, stabilized double component blade.

- Print edge (VU) insolubly bonded to the carrier.

- Defined plan parallel surface ground print side and edge.

- Excellent surface characteristics of print edge.

- RKS RS blades are delivered to you ready to print

- Higher speed in print.

- Excellent quality in flat and fine print.

- Significantly longer in print.

- Significantly longer service life

- Outstanding material qualities.

- Reduced maintance

- Cost savings through less need to change the blades.

- Increased productivity.



RKS RS WP  Rotary blades stand for an optimised print quality and can be reground as required.

High ink deposits, brail etc.: 55° Shore (DIN A)

Conventional print: 65° Shore (DIN A)

Exact work with higher precision and fine lines: 75° Shore (DIN A)

With the RKS rotation squeegees type RS / RS WP RKS is able to deliver a highly flexible squeegee blade, which still remains stable enough to stay with in the necessary parameters such as print angle , parallel, pressure, and will not take on any form or memory in or after use.



The results in print speak for them selves:

In direct comparison to the commonly used standard blade, the type RS / RS WP delivers a substantially higher print speed (up to 15% increase) is possible with no compromise to the printed end result.

An insoluble bond between the carrier and the elastic print edge allows with this blade, without a problem for a very much more extended time in print.

The RKS blade type RS can also be reground. Through this you can greatly increase the life of the blade in comparison to the more commonly used steel blade with a PU print edge applied to it.

The print shows, that in co-operation with the RKS RS / RS WP blade the life expectancy of the screen is increased.

Going over to the new squeegee blade allows you to be more productive more economical and your time when not in print is reduced.

RKS blade type RS / RS WP can de made for all  of the most popular types of machine and is delivered ready to print.


RS WP TYP GALLUS ECS

RS WP Typ ECS 340

RS WP TYPE GALLUS EM

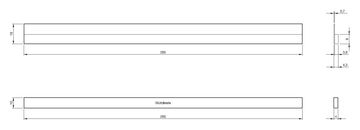

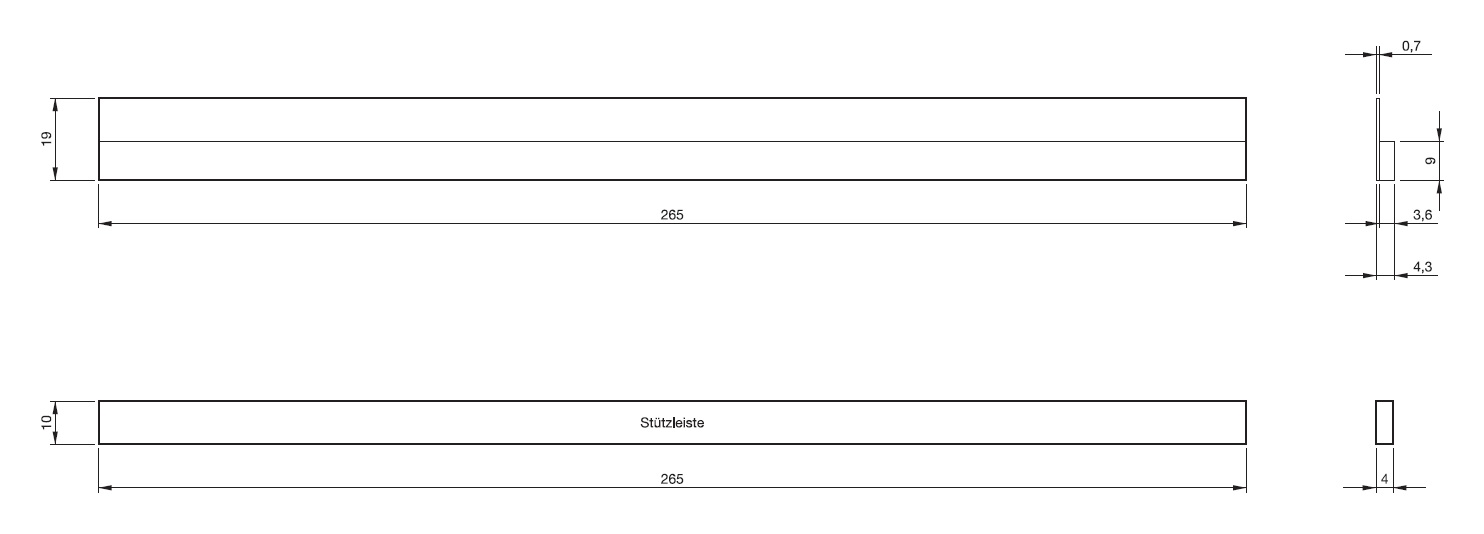

RS WP Type EM 260

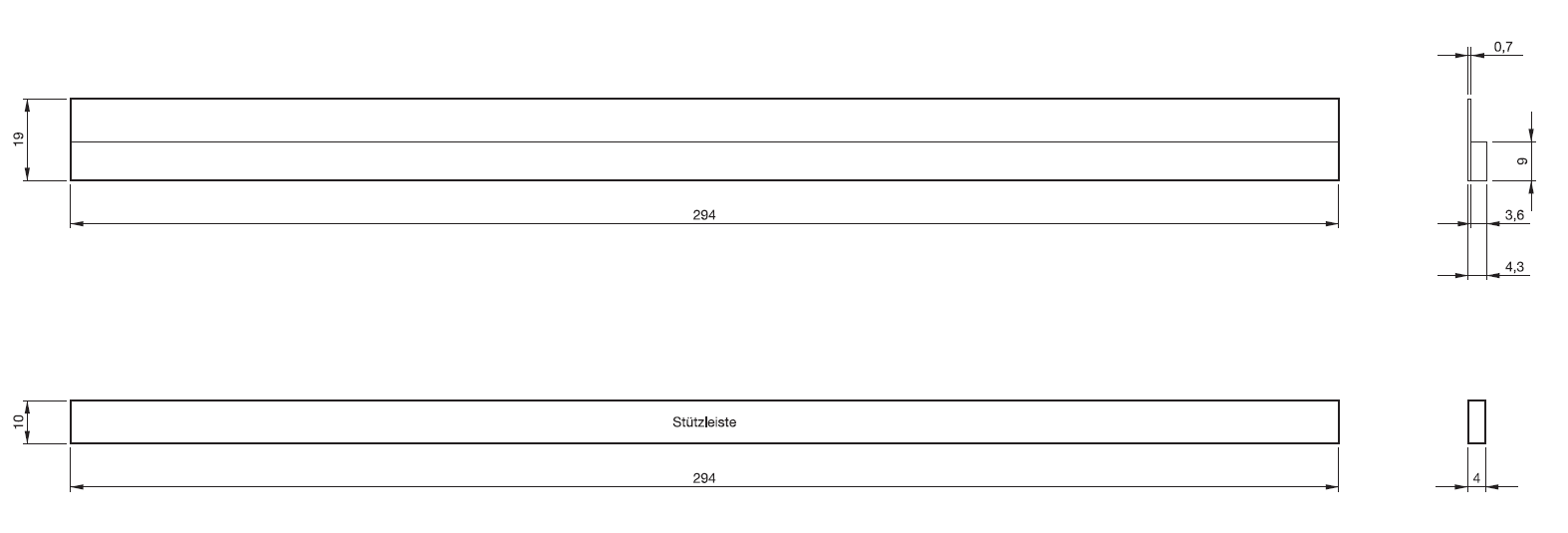

RS WP Type EM 280
RS WP Typ EM 410
RKS RAKEL Typ EM 260

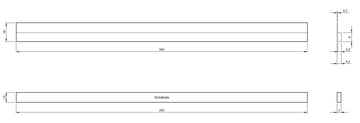

RKS RAKEL Typ EM 280

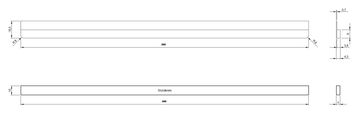

RKS RAKEL Typ EM 340

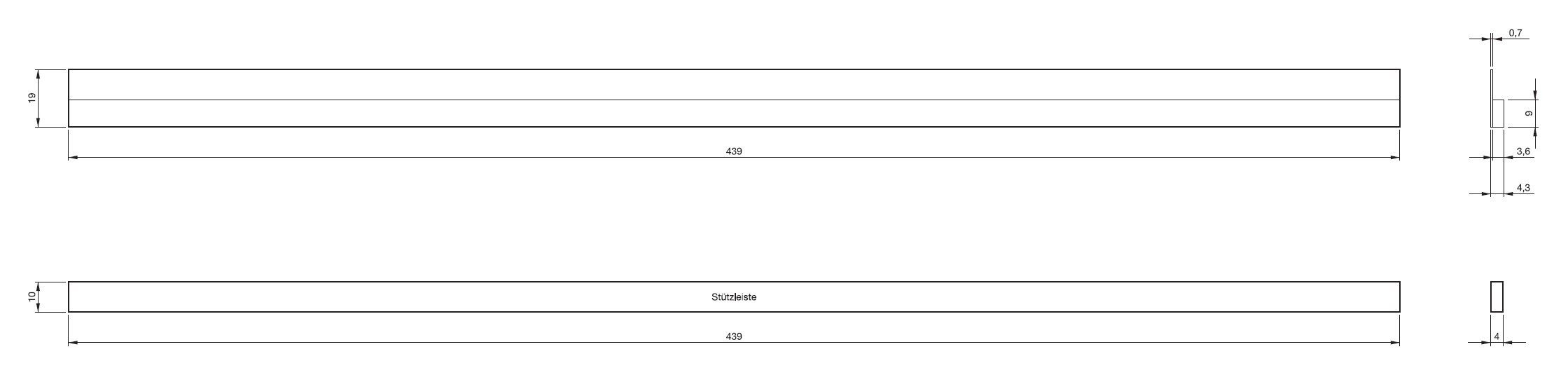

RS WP Typ EM 410

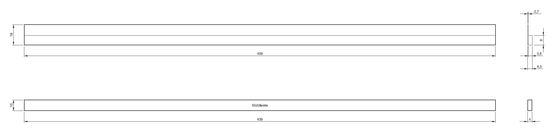

RKS RAKEL Typ Em 410

RKS SYSTEM SQUEEGEE TYPE GALLUS EM

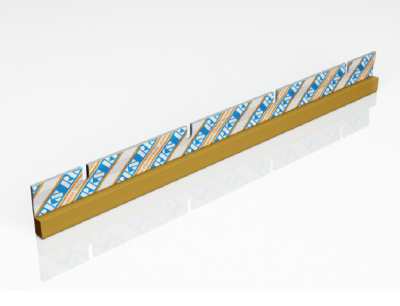

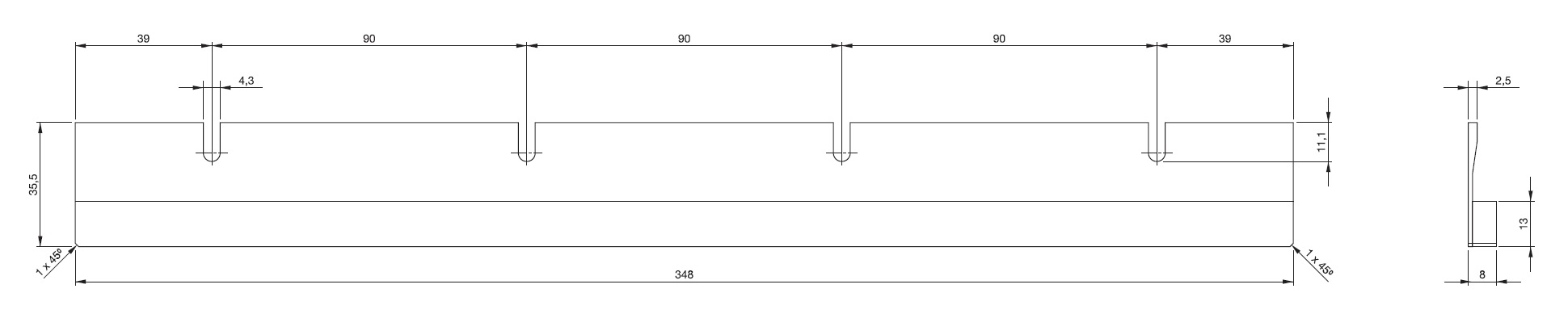

RKS Systemrakel Type EM 340 S

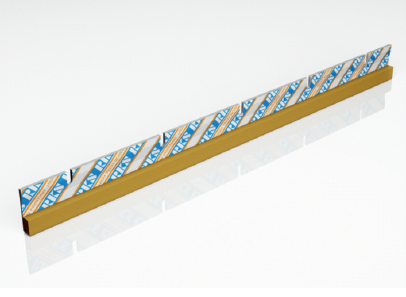

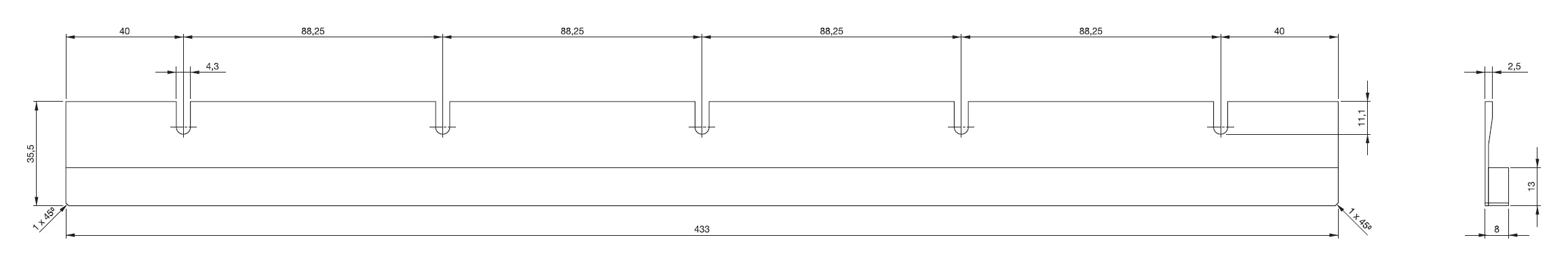

RKS Systemrakel Type EM 410 S

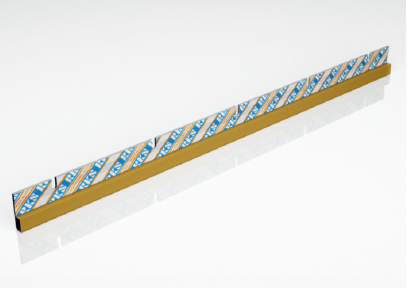

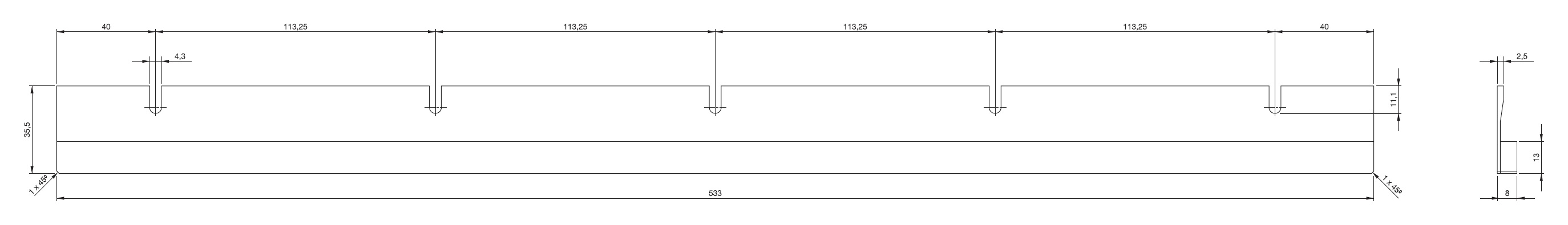

RKS Systemrakel Type EM 510 S (without drillings)
RKS Rakel Typ EM 340 / S
RKS Rakel Typ EM 410 / S
RKS Rakel Typ EM 510 / S
(mit Aussparungen - ohne Bohrungen)

CARBON S TYPE GALLUS EM

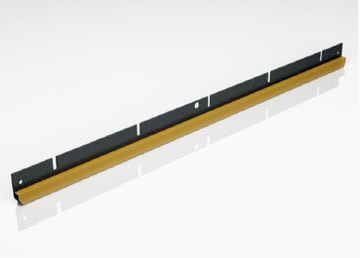

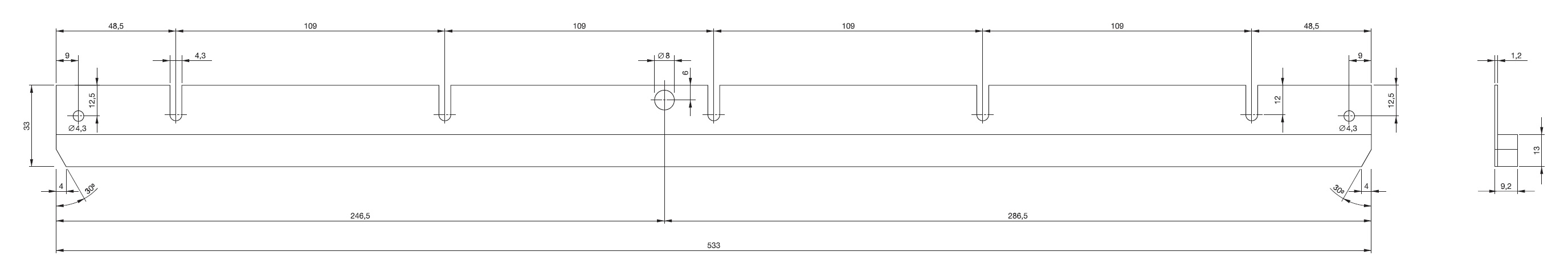

RKS Carbon S Typ EM 510 S (with drillings)
RKS Rakel Typ EM 510 S

RKS WP Typ GALLUS ICS

RS WP Typ Gallus ICS 670

RS WP TYPE GALLUS R

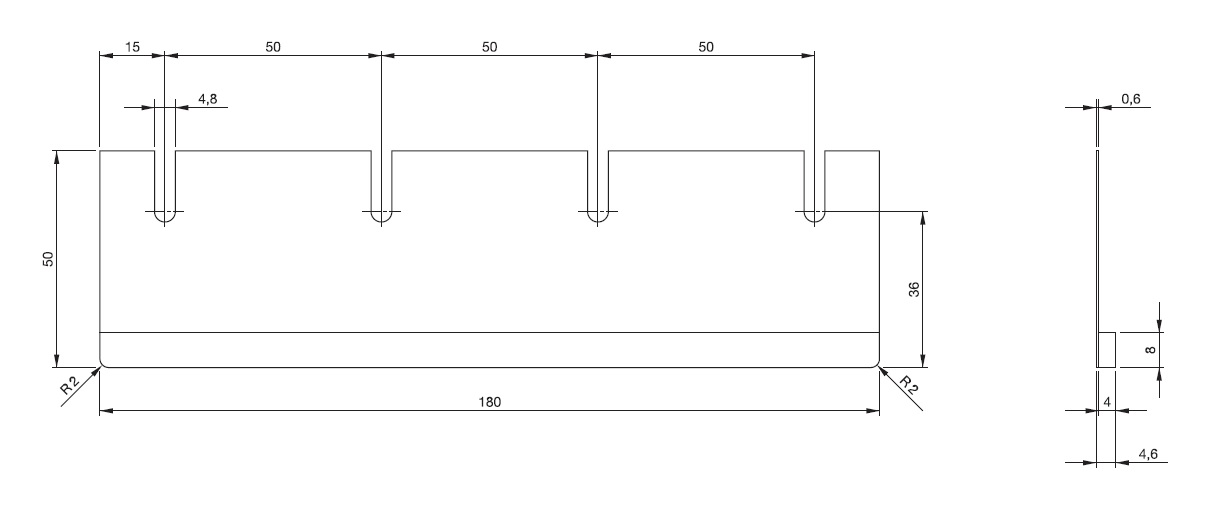

RS WP Type R 160

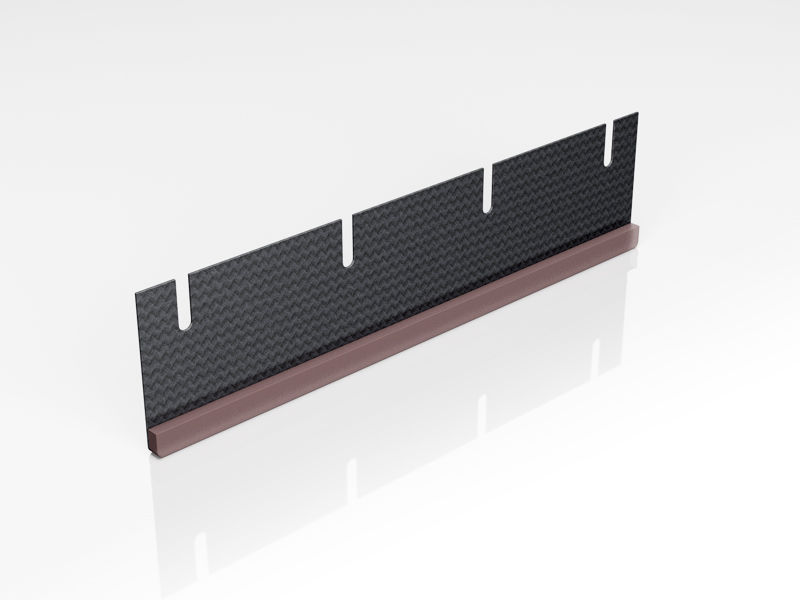

RS WP Type R 200

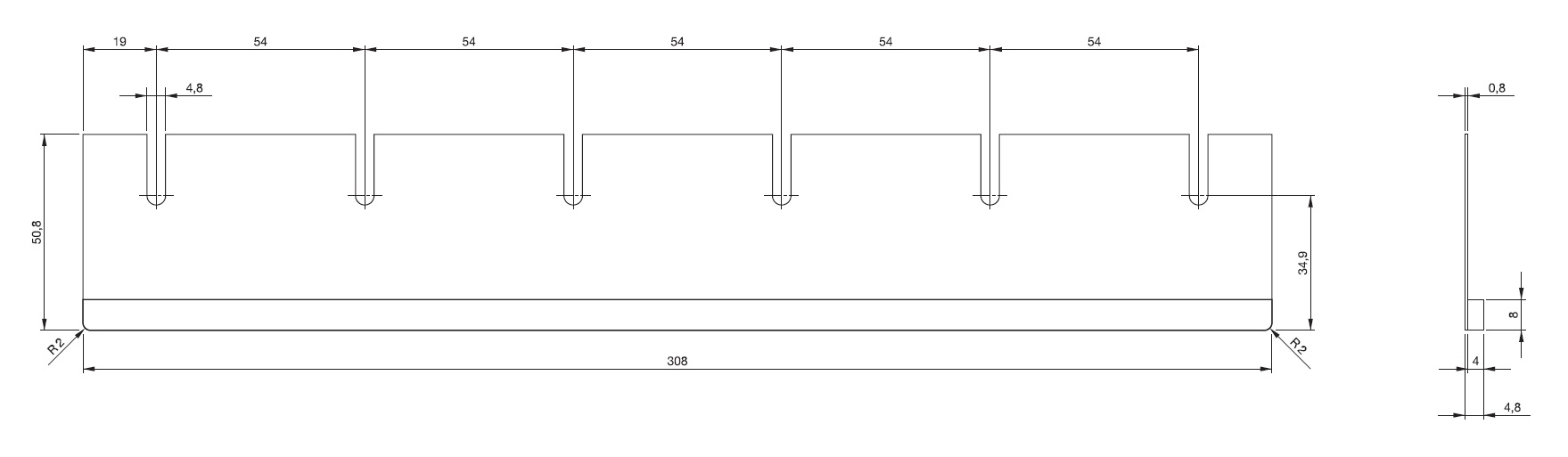

RS WP Type R 250

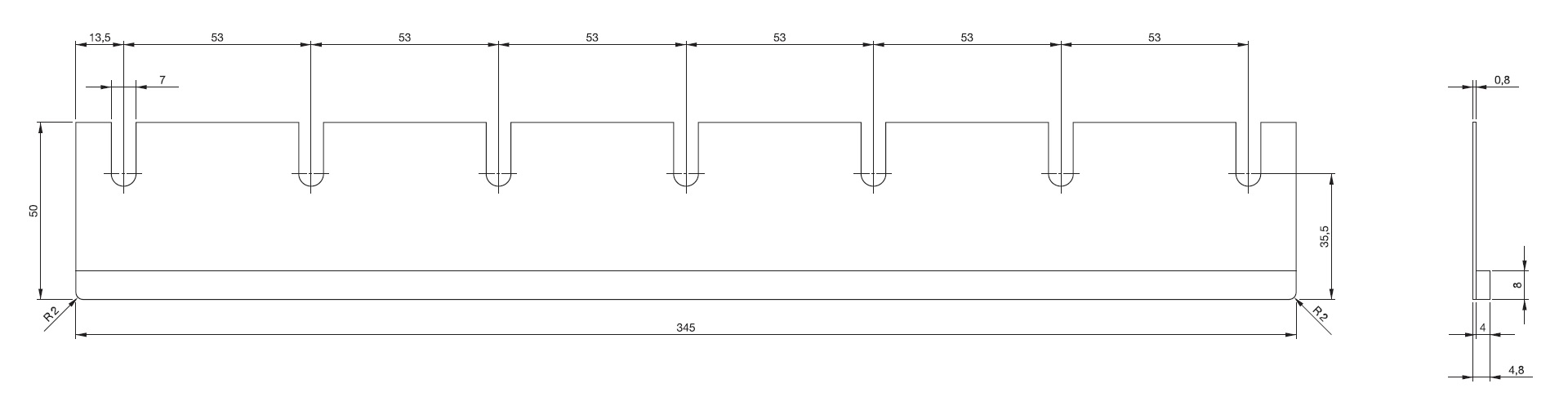

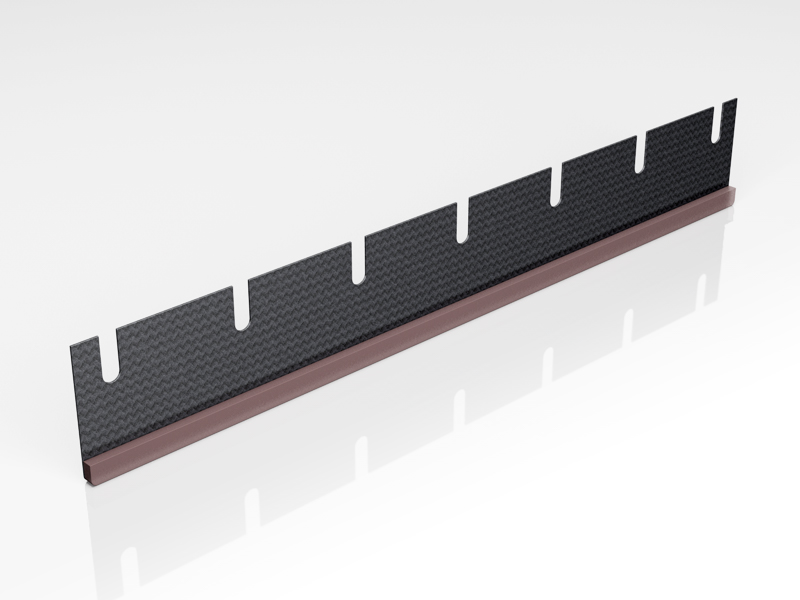

RS WP Type R 300

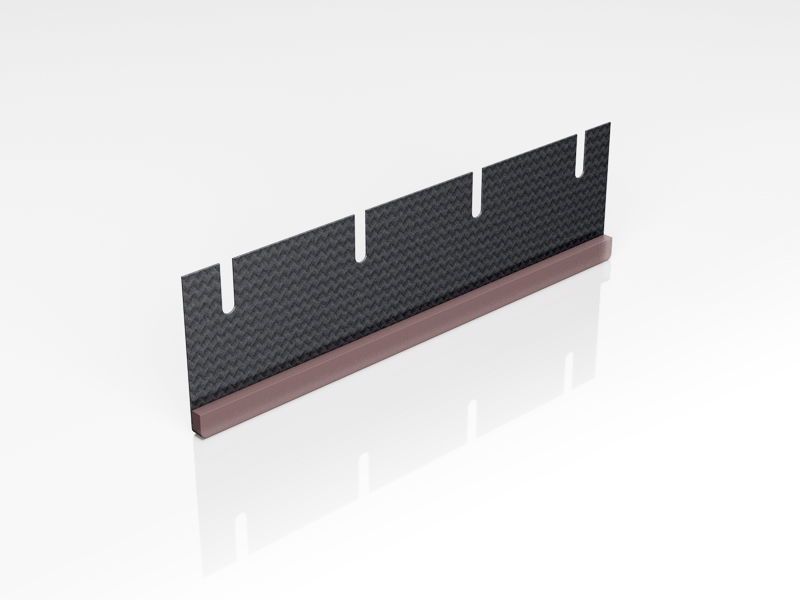

RKS Rakel Typ R 160

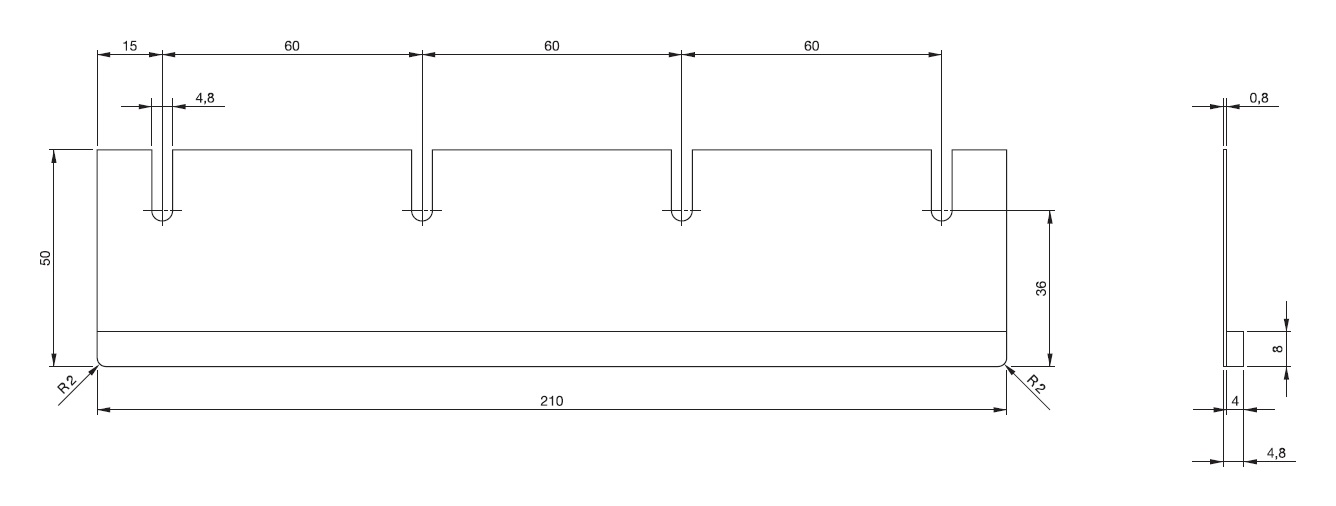

RKS Rakel Typ R 200
RKS Rakel Typ R 250
RKS Rakel Typ R 300

RS WP TYPE GALLUS RCS

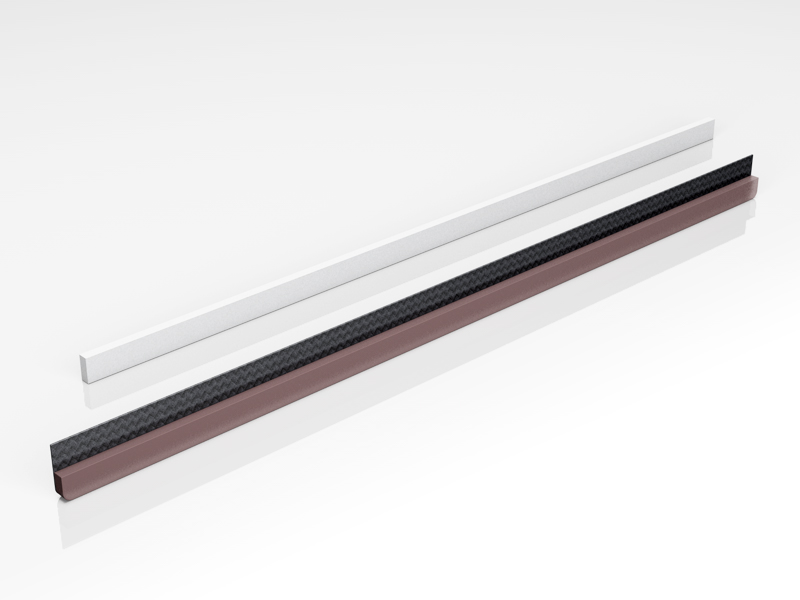

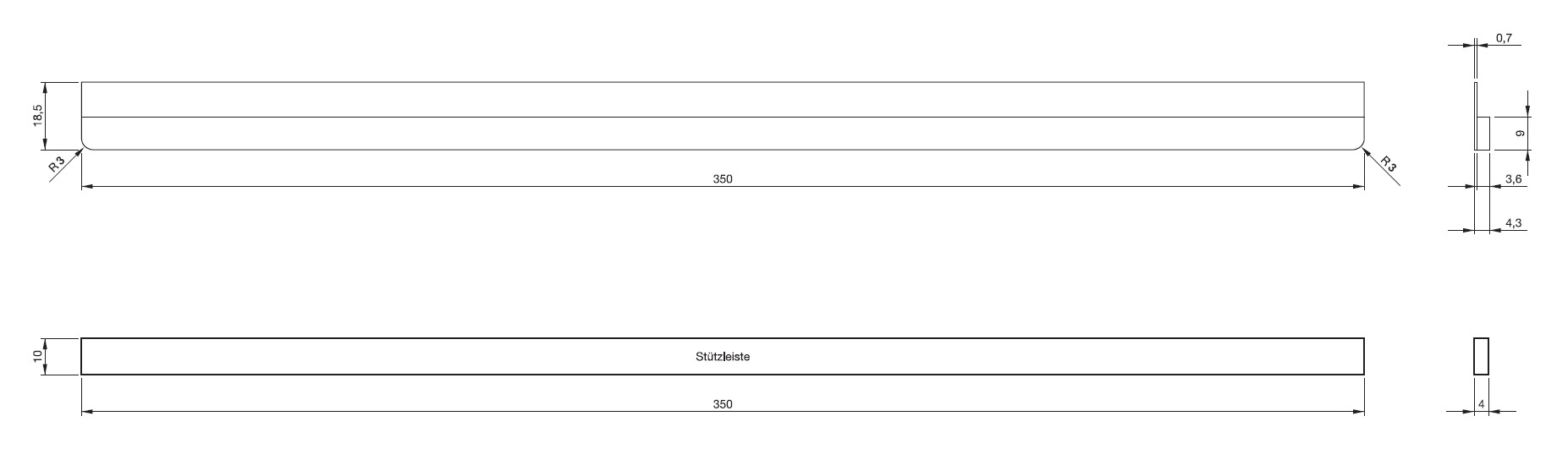

RS WP Type RCS 330

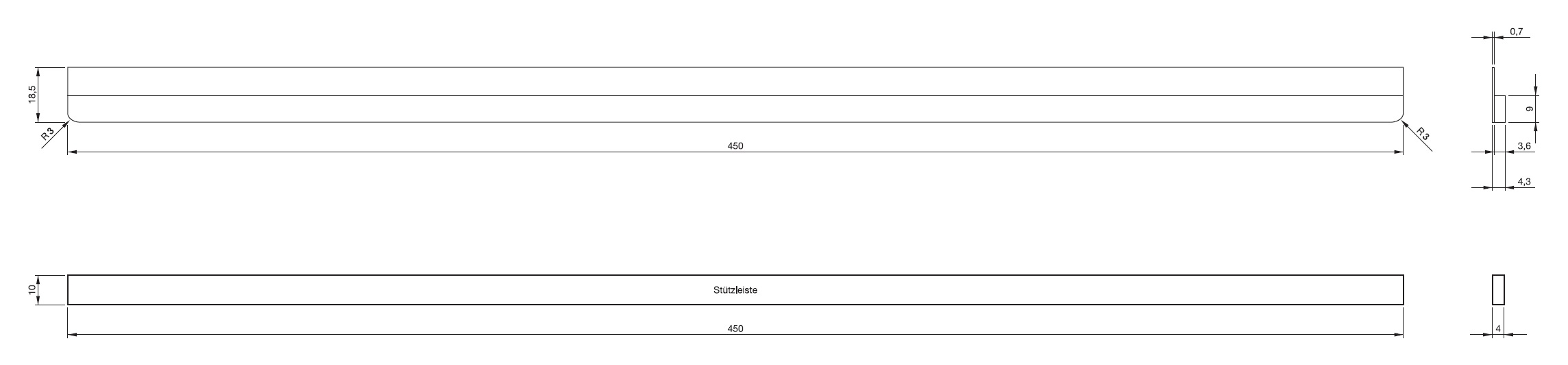

RS WP Type RCS 430

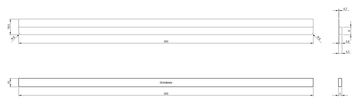

RKS Rakel Typ RCS 330
RKS RAkel Typ RCS 430

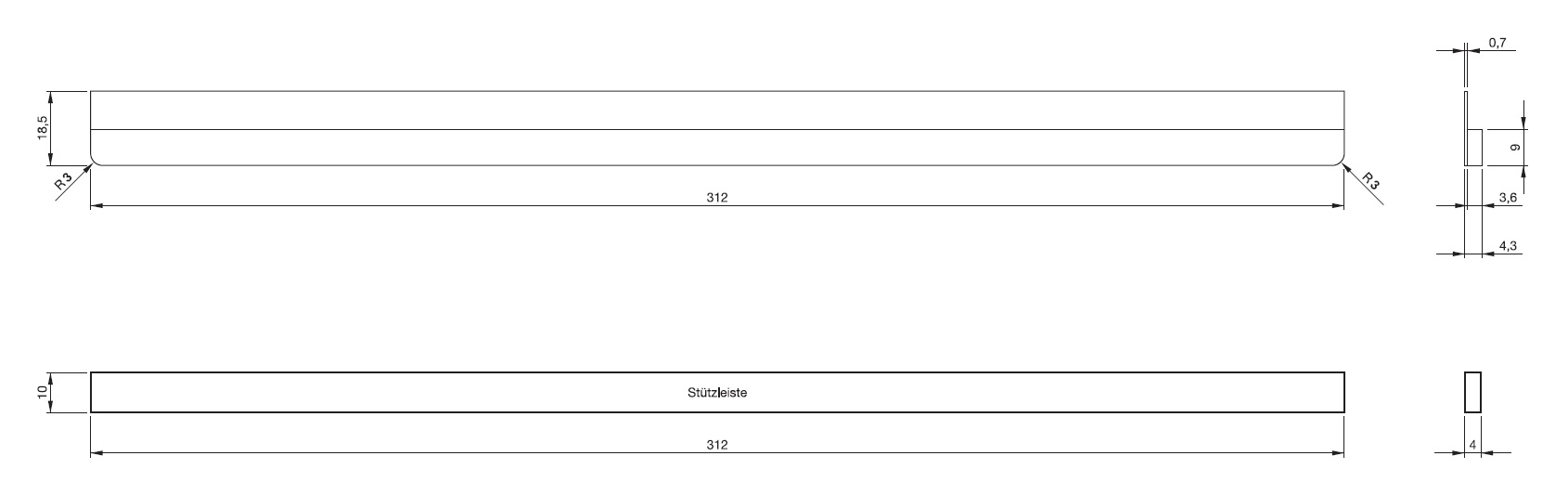

RS WP TYP GALLUS TCS 250

RKS Rakel Typ TCS 250
RS WP Typ TCS 250
